When it comes to fanless industrial SBCs (Single Board Computers), power consumption is one of the most critical design considerations. Fanless designs rely on passive cooling, meaning every extra watt of heat generated must be dissipated through heatsinks and chassis design without the help of active airflow. This makes CPU architecture choice—x86 or ARM—especially important.
In industrial environments, where 24/7 operation, reliability, and environmental constraints matter, the power efficiency of the SBC determines not only thermal stability but also longevity, maintenance requirements, and operating costs.
This article explores x86 vs ARM power consumption in the context of fanless industrial SBCs, analyzing thermal characteristics, application workloads, and deployment trade-offs.
1. Why Power Consumption Matters More in Fanless Systems
Unlike desktop PCs or rack servers, fanless SBCs cannot rely on active cooling fans to keep components within safe operating temperatures. This design choice is often made for:
- Dust resistance in manufacturing floors and outdoor kiosks
- Silent operation in control rooms or medical environments
- Reduced mechanical failure risk by eliminating moving parts
- Compliance with vibration and shock resistance standards
In such systems, every watt matters. A CPU that consumes 10W instead of 25W may seem like a small difference, but over time, it impacts heat dissipation, enclosure design, and power supply requirements.
For system integrators, this also means simpler product certification for thermal and safety compliance, which directly reduces development costs and time-to-market.
2. The Power Efficiency Profiles of x86 and ARM
ARM Architecture
ARM CPUs, such as those found in NXP i.MX, Rockchip, and Allwinner industrial SoCs, are designed with low-power embedded use in mind. Key advantages:
- Typical TDP (Thermal Design Power): 2W to 15W
- Optimized for mobile and battery-powered systems
- Efficient sleep and idle states
- Integrated GPUs and NPUs with low power draw
ARM SoCs are manufactured with aggressive power gating and DVFS (Dynamic Voltage and Frequency Scaling), allowing fine-grained control of power usage.
For example, the ARM-based Android SBCs widely used in IoT and smart appliances achieve long uptime with minimal energy draw, which is crucial in both industrial and consumer deployments.

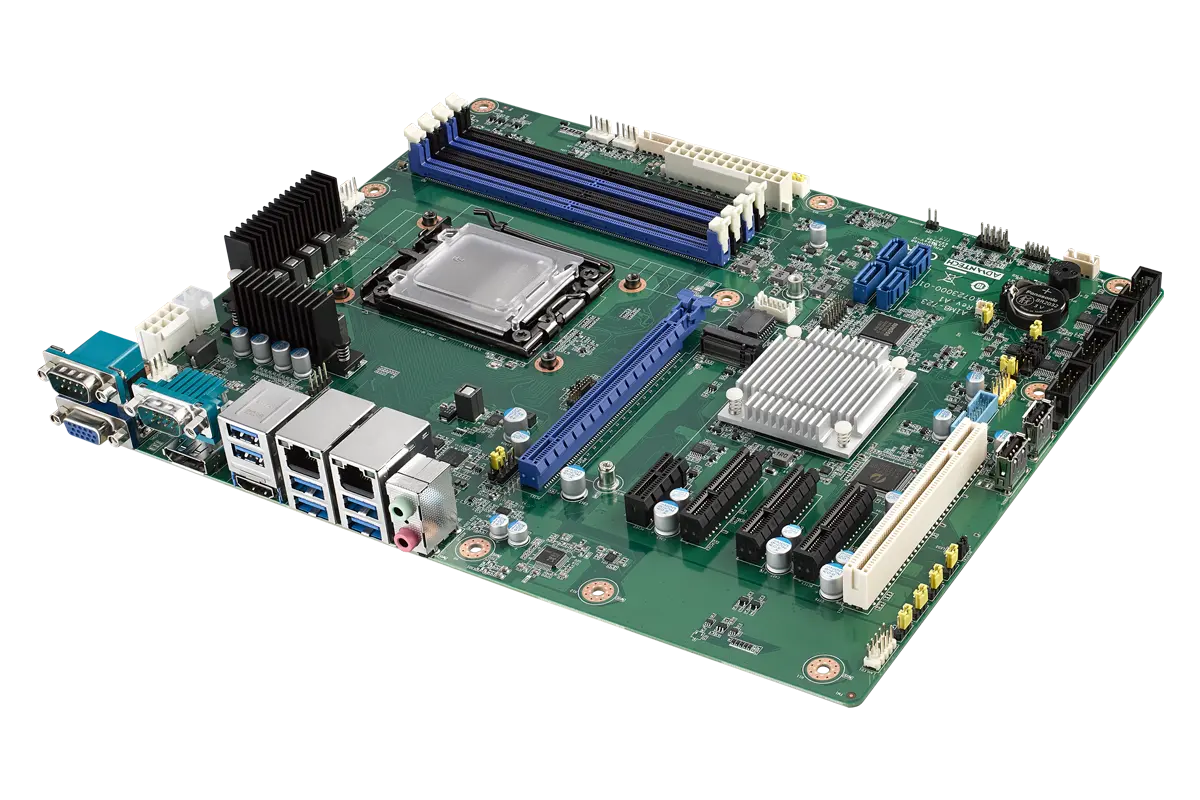

x86 Architecture
Embedded x86 CPUs, such as Intel Atom, Celeron, Pentium Silver, or AMD Ryzen Embedded, are descendants of desktop/server architectures but tuned for embedded use:
- Typical TDP: 6W to 35W (fanless-optimized SKUs on the lower end)
- More powerful out-of-order execution cores
- Higher base clock speeds and greater multi-threading capabilities
- Integrated GPUs (Intel UHD, Radeon Vega) optimized for performance but at higher power cost
x86 chips are generally less power-efficient per watt than ARM at low loads, but deliver higher peak performance, which is valuable in video analytics, AI inference, or multi-VM workloads.
3. Comparative Power Consumption in Real Deployments
The following table summarizes typical consumption ranges for fanless SBCs in idle and load conditions:
| Architecture | Example SBC SoC | Idle Power Draw | Typical Load Power Draw | Peak Load Power Draw |
|---|---|---|---|---|
| ARM | Rockchip RK3568 | 2–3W | 6–8W | 12W |
| ARM | NXP i.MX8M Plus | 2–4W | 7–10W | 15W |
| x86 | Intel Atom x6425E | 4–6W | 10–15W | 18W |
| x86 | AMD Ryzen Embedded V1605B | 6–8W | 18–22W | 25–30W |
From these numbers, ARM systems typically consume 40–60% less power than comparable x86 systems in the same workload category.
This efficiency gap is particularly important when scaling to hundreds or thousands of deployed units—the difference adds up to significant energy savings and lower operating costs.
4. Thermal Implications for Fanless Enclosures
The less power a chip consumes, the less heat it generates. In fanless industrial SBCs:
- ARM-based systems can operate with smaller heatsinks, enabling compact enclosures.
- x86-based fanless systems require larger heatsinks or aluminum chassis acting as heat spreaders.
For deployments in hot climates or enclosed cabinets, ARM’s lower thermal footprint is a major advantage—reducing the risk of thermal throttling.
Thermal testing also shows that ARM-based boards can run in sealed IP65/IP67 enclosures without additional design costs, while x86 solutions may demand custom cooling fins and thermal interface engineering.
5. Impact on Power Supply and UPS Sizing
In industrial automation or remote IoT deployments, SBCs may run on DC power supplies, solar arrays, or battery backups. Lower power draw means:
- Smaller DC-DC converters can be used
- Longer UPS runtime during outages
- Reduced peak current demand, prolonging battery health
For mobile robotics, drones, or handheld terminals, this translates into longer operational time per charge—a decisive factor in both usability and business viability.
6. Workload and Application Considerations
It’s also important to note that the choice of architecture depends on workload:
- ARM excels in HMI panels, IoT gateways, and AI-enabled edge devices where efficiency outweighs raw speed.
- x86 excels in machine vision, industrial PCs, and virtualization scenarios where multi-core performance and software compatibility matter more.
Thus, the question is not just “which uses less power,” but rather “which architecture provides the best balance between efficiency and performance for the given application.”
7. Conclusion: Choosing the Right SBC for Fanless Deployments
Power consumption is not just a spec sheet number; it defines thermal design, system reliability, and long-term operating costs.
- If your application is low-power, always-on, and space-constrained, ARM fanless SBCs are usually the better fit.
- If your application needs complex computation, multiple OS support, or compatibility with existing x86 software stacks, x86 fanless SBCs may be worth the higher power and thermal design effort.
Ultimately, both architectures have their place. The right choice depends on balancing power budget, performance requirements, and environmental constraints.
